Product description

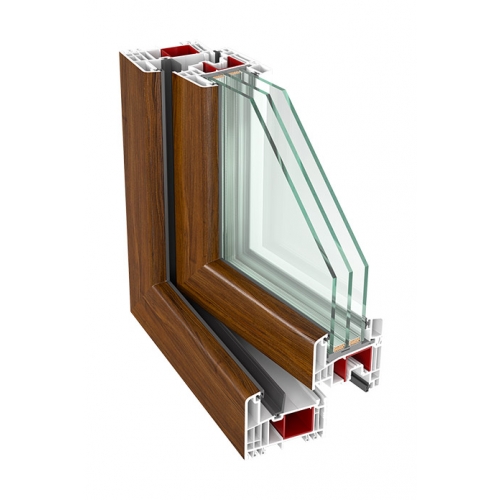

ENERGO Gealan S9000 system. It is an exceptional product in its class with a profile depth of 82.5mm. Its 6-chamber structure allows achieving very good thermal insulation characteristics (Uw = 0.77/m2K for the specified window), which leads to a reduction in the cost of heating. It has an internal and support seal in the form of three gaskets.
Product characteristics
- The windows are available in 58 colors of Renolit film on white or cream cores. For 9 colors in the acrycolor palette.
- Acoustic insulation depends on the applied glazing.
- Heat transfer coefficient Uw = 0.77 W/m2K for reference window
- The triple seal window system is made of EPDM. Available colors: black and grey. Optionally choose to fill the fitting groove.
- Steel reinforcement in the form of an open channel section as standard. In the case of large structures or on request - full steel reinforcement (closed) in the frame.
- Installation of the SIEGENIA TITAN universal system. Equipped with micro ventilation, mishandling device and sash lift finger. Optionally select closed hinges TITAN 24 Axxent
- Standard galvanized steel frame. The optional TGI®-Walk warm edge is available in a variety of colors.
- Glazing thickness 48 mm. Standard glazing-chamber heat transfer coefficient Ug = 0.5 W/m2K.
- 6 - chamber profile with a frame and sash depth of 82.5 mm. The frame and sash infeed is 118 mm. Movable post width 170 mm.
The color tones on the screen are reproduced electronically. They may differ from the actual color tone because our color perception is affected by the surface of the material, glare, lighting, and other factors. To accurately determine a color shade, we recommend that you use real color shade catalogs, always be confident in your choice, and use the color shade catalogs in an environment or conditions similar to those for which you choose a color.
The image of the product is informative. Specifications may vary depending on configuration and size. Fittings and their location may vary.
